Feeders
Gilbertson Mealworm Feeder
designed by Steve Gilbertson
Wire through center of openings excludes larger birds (same principle as Gilwood entry). Designed for Gilbertson conduit/rebar mounting system, although other mounting methods may be used. Easy to build.
Lumber/Material: 1 x 10 (top/bottom), 2 x 2 (corner blocks), 2 x 4 (pole mounting block), 1/8" wire or rod.
Download plan: Verson 1.0: 319kb (pdf)
designed by Steve Gilbertson
Wire through center of openings excludes larger birds (same principle as Gilwood entry). Designed for Gilbertson conduit/rebar mounting system, although other mounting methods may be used. Easy to build.
Lumber/Material: 1 x 10 (top/bottom), 2 x 2 (corner blocks), 2 x 4 (pole mounting block), 1/8" wire or rod.
Download plan: Verson 1.0: 319kb (pdf)
The nestbox has three compartments, each 10" tall. The female, or adult pair, will stay in one compartment, while juvenile squirrels will be in another compartment. The newborn pups will be in the third. The mid floors that separate the compartments both have 1 1/2" x 1 1/2" cutouts on one corner to allow the squirrels to move between compartments. Two entries provide a means of escape in the event a climbing snake enters the box.
Two sizes shown on plans: 22 and 32 sq. in.
Style: Side opening, top pivot, flat roof
Overall size:
22 sq. in.: 5 1/2" wide x 7" deep x 33 1/4" high
32 sq. in.: 7 1/4" wide x 7" deep x 33 1/4" high
Lumber:
For 22 sq. in. (14) ft. 1 x 6
For 32 sq. in. (7) ft. 1 x 8 and (7) ft. 1 x 6
Saw cuts: crosscut
Download plan: 607kb (pdf)
Two sizes shown on plans: 22 and 32 sq. in.
Style: Side opening, top pivot, flat roof
Overall size:
22 sq. in.: 5 1/2" wide x 7" deep x 33 1/4" high
32 sq. in.: 7 1/4" wide x 7" deep x 33 1/4" high
Lumber:
For 22 sq. in. (14) ft. 1 x 6
For 32 sq. in. (7) ft. 1 x 8 and (7) ft. 1 x 6
Saw cuts: crosscut
Download plan: 607kb (pdf)

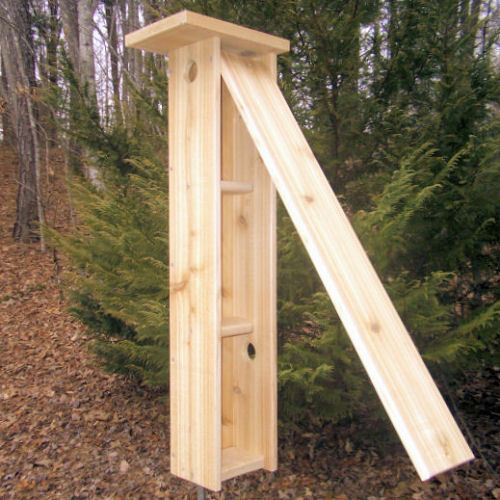

Flying Squirrel Nestbox
Home | Site Map | Disclaimer | Contact Us
Copyright © 2012 NestboxBuilder.com
This site was last updated on 12/15/2017
Copyright © 2012 NestboxBuilder.com
This site was last updated on 12/15/2017
Nestbox plans:
Front Opening
Side Opening
Slot Boxes
PVC boxes
Flying Squirrel Nestbox
Mealworm Feeders
Plans page for large cavity nesters
(Kestrel, Wood Duck, Owl, etc.)
Front Opening
Side Opening
Slot Boxes
PVC boxes
Flying Squirrel Nestbox
Mealworm Feeders
Plans page for large cavity nesters
(Kestrel, Wood Duck, Owl, etc.)
Nestboxes for small cavity nesters
Free nestbox plans for Bluebirds and other cavity-nesters. Plans are in pdf format and require Adobe Reader (also free). All plans/links will open in a new browser window. To view plans, just scroll down, or select a category from the list at left. Left click on nestbox thumbnails for larger view.
At nest level: On boxes with angled fronts (e.g. Peterson) the floor area is calculated at 2 1/2" below bottom of entry.
Rip: Cutting a wider board into narrow ones (usually requires a table saw)
Bevel: Cutting an angle into the edge of a board
Free nestbox plans for Bluebirds and other cavity-nesters. Plans are in pdf format and require Adobe Reader (also free). All plans/links will open in a new browser window. To view plans, just scroll down, or select a category from the list at left. Left click on nestbox thumbnails for larger view.
Terms used in plans descriptions
Drop: Distance from bottom of entry to top of floorAt nest level: On boxes with angled fronts (e.g. Peterson) the floor area is calculated at 2 1/2" below bottom of entry.
Saw cuts
Crosscut: Cutting a longer board into shorter ones (easiest cut)Rip: Cutting a wider board into narrow ones (usually requires a table saw)
Bevel: Cutting an angle into the edge of a board
Front opening nestboxes
F30
With a 30.25 sq. in. floor, this box is ideal for larger cavity nesters such as Western and Mountain Bluebirds. Box height varies depending on drop selected (entry to floor distance).
Front opening, top pivot, flat roof. Floor: 30.25 sq. in; drop: variable from 5" to 8 1/2"
Ventilation: 2.75 sq. in. (1/2" space over door). Can increase with optional vent holes.
Lumber: 1 x 6 (front, back, floor); 1 x 8 (sides); 1 x 10 (roof)
Saw cuts: crosscut
Download plan: Version 1: 201kb (pdf)
With a 30.25 sq. in. floor, this box is ideal for larger cavity nesters such as Western and Mountain Bluebirds. Box height varies depending on drop selected (entry to floor distance).
Front opening, top pivot, flat roof. Floor: 30.25 sq. in; drop: variable from 5" to 8 1/2"
Ventilation: 2.75 sq. in. (1/2" space over door). Can increase with optional vent holes.
Lumber: 1 x 6 (front, back, floor); 1 x 8 (sides); 1 x 10 (roof)
Saw cuts: crosscut
Download plan: Version 1: 201kb (pdf)
Gilfort
Designed by Tom Comfort
A hybrid design combining the features of the Gilwood and the Troyer. Door and entry are standard Gilwood. Has inner roof.
Style: Front opening, bottom pivot, flat roof. Floor area: 11 sq. in. (at nest level); Drop: 4 3/4"
Ventilation: large entry, plus gap over door, provides 4.8 sq. in.
Lumber: 1 x 8 and 1 x 4 (no ripping) or single 1 x 8 (requires ripping)
Saw cuts: Crosscut, bevel (rip required if using single 1 x 8)
Download plan: Version 1: 217kb (pdf)
Designed by Tom Comfort
A hybrid design combining the features of the Gilwood and the Troyer. Door and entry are standard Gilwood. Has inner roof.
Style: Front opening, bottom pivot, flat roof. Floor area: 11 sq. in. (at nest level); Drop: 4 3/4"
Ventilation: large entry, plus gap over door, provides 4.8 sq. in.
Lumber: 1 x 8 and 1 x 4 (no ripping) or single 1 x 8 (requires ripping)
Saw cuts: Crosscut, bevel (rip required if using single 1 x 8)
Download plan: Version 1: 217kb (pdf)
Gilwood
Designed by Steve Gilbertson
One of the most successful nestboxes ever designed. Large entry allows air flow while an adjustable wire limits functional entry height. Style: Front opening, bottom pivot, flat roof.
Floor area: 15 sq. in.; drop 5". Ventilation: large entry, plus gap over door, provides 4.8 sq. in.
Lumber: 1 x 8 and 1 x 4 (no ripping) or single 1 x 8 (requires ripping)
Saw cuts: Crosscut (rip required if using single 1 x 8)
Download plan (bottom pivot version - shown at left): 242kb (pdf)
Download plan (top pivot original version): 40kb (pdf)
Designed by Steve Gilbertson
One of the most successful nestboxes ever designed. Large entry allows air flow while an adjustable wire limits functional entry height. Style: Front opening, bottom pivot, flat roof.
Floor area: 15 sq. in.; drop 5". Ventilation: large entry, plus gap over door, provides 4.8 sq. in.
Lumber: 1 x 8 and 1 x 4 (no ripping) or single 1 x 8 (requires ripping)
Saw cuts: Crosscut (rip required if using single 1 x 8)
Download plan (bottom pivot version - shown at left): 242kb (pdf)
Download plan (top pivot original version): 40kb (pdf)

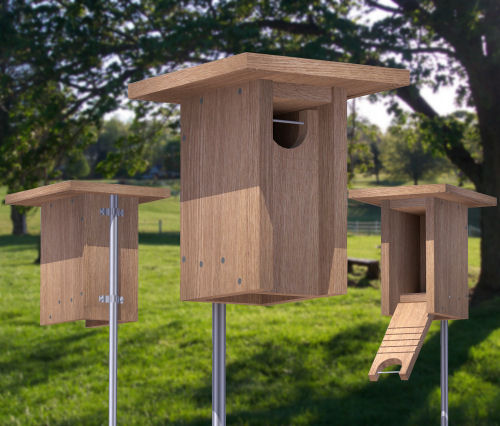

Gilwood II
